Fell Locomotive Museum

H 199 is the centrepiece of the museum, being the last remaining Fell locomotive in the world. The wheels are mounted on rollers so the systems for gripping the centre rail can be demonstrated

3 July 2016

Visitors are able to take a look underneath the locomotive, getting a good view

3 July 2016

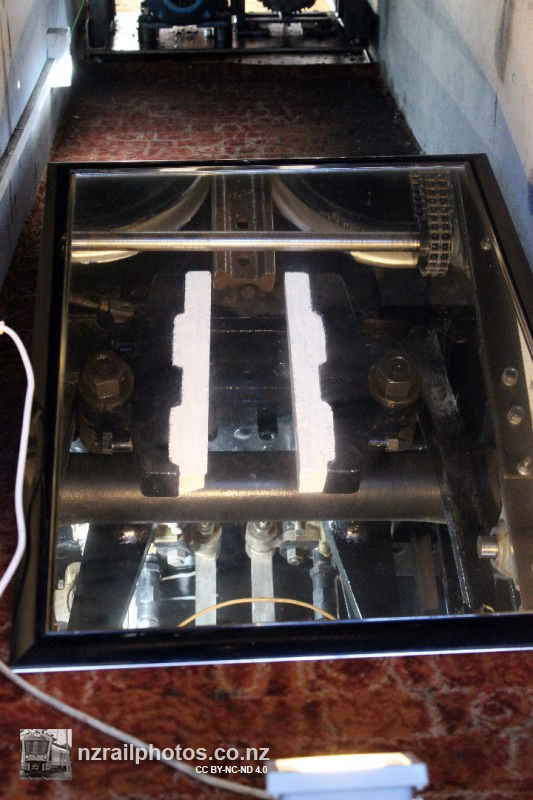

A better view of the brake blocks, viewed in a mirror positioned under the locomotive

3 July 2016

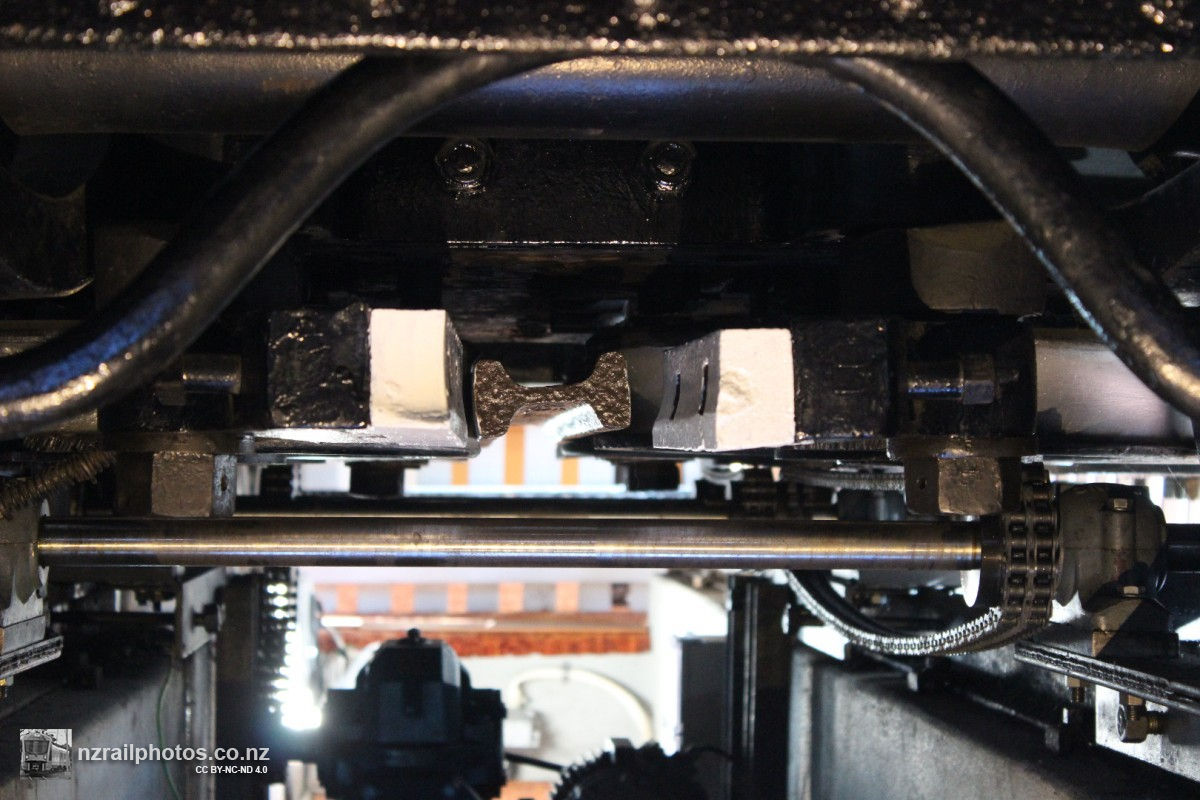

Here, the brake blocks and centre rail grip wheels are visible under H 199. The locomotive had two engines, one for providing power to the normal running wheels, and one to provide power to the horizontal wheels that grip the centre rail

3 July 2016

A new brake block on display at the museum

3 July 2016

A worn brake block on display at the museum. Brake blocks on the locomotives and Fell brake vans had to be replaced after each return trip due to the immense friction on the 1 in 15 grade

3 July 2016

Sample track on display at the museum, showing how the centre rail was attached to the track. The sample track is on the original grade of 1 in 15

3 July 2016

Fell brake van F 210 on display at the museum

3 July 2016

Inside the van, the guard applied two sets of handbrakes to grip the centre rail for the descent down the grade. As the train descended the grade, the guard continually tightened the brakes as the brake blocks wore down

3 July 2016

A model of Cross Creek, showing the yard layout. Cross Creek was at the bottom of the Incline

3 July 2016

A view of the model, showing the start of the actual Incline

3 July 2016

A view of the model engine shed and railcar depot

3 July 2016

Although the H class locomotives always faced the same way, a turntable was provided for mainline locomotives arriving at Cross Creek

3 July 2016

View of the yard at Summit at the incline end, with the tunnel at the top of the Incline visible

3 July 2016

Overview of the Summit yard

3 July 2016

The headboard from the excursion marking the opening of the Rimutaka tunnel and the closure of the Incline

3 July 2016

Number plates from the six H class locomotives on display at the museum

3 July 2016

Number plates and photos of H 199 and H 200 at the museum

3 July 2016

View inside the cab of H 199

3 July 2016
